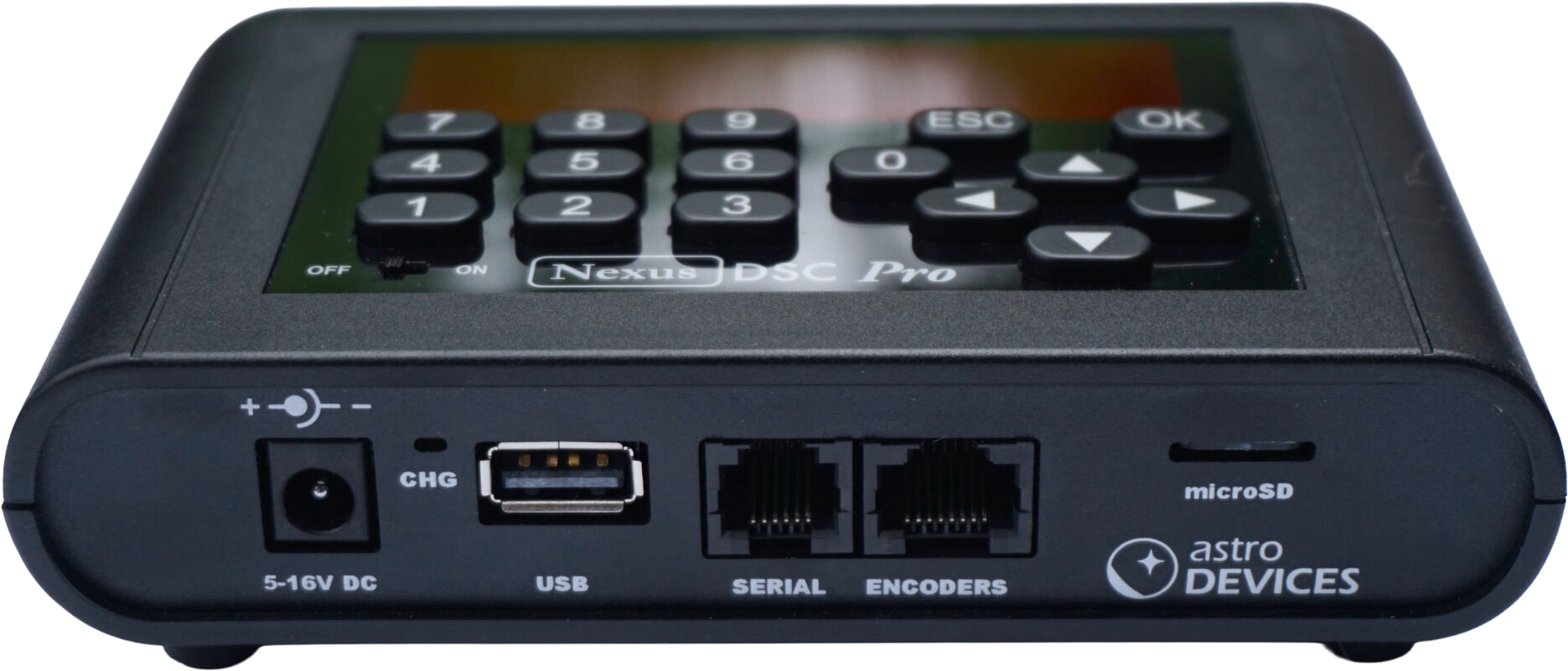

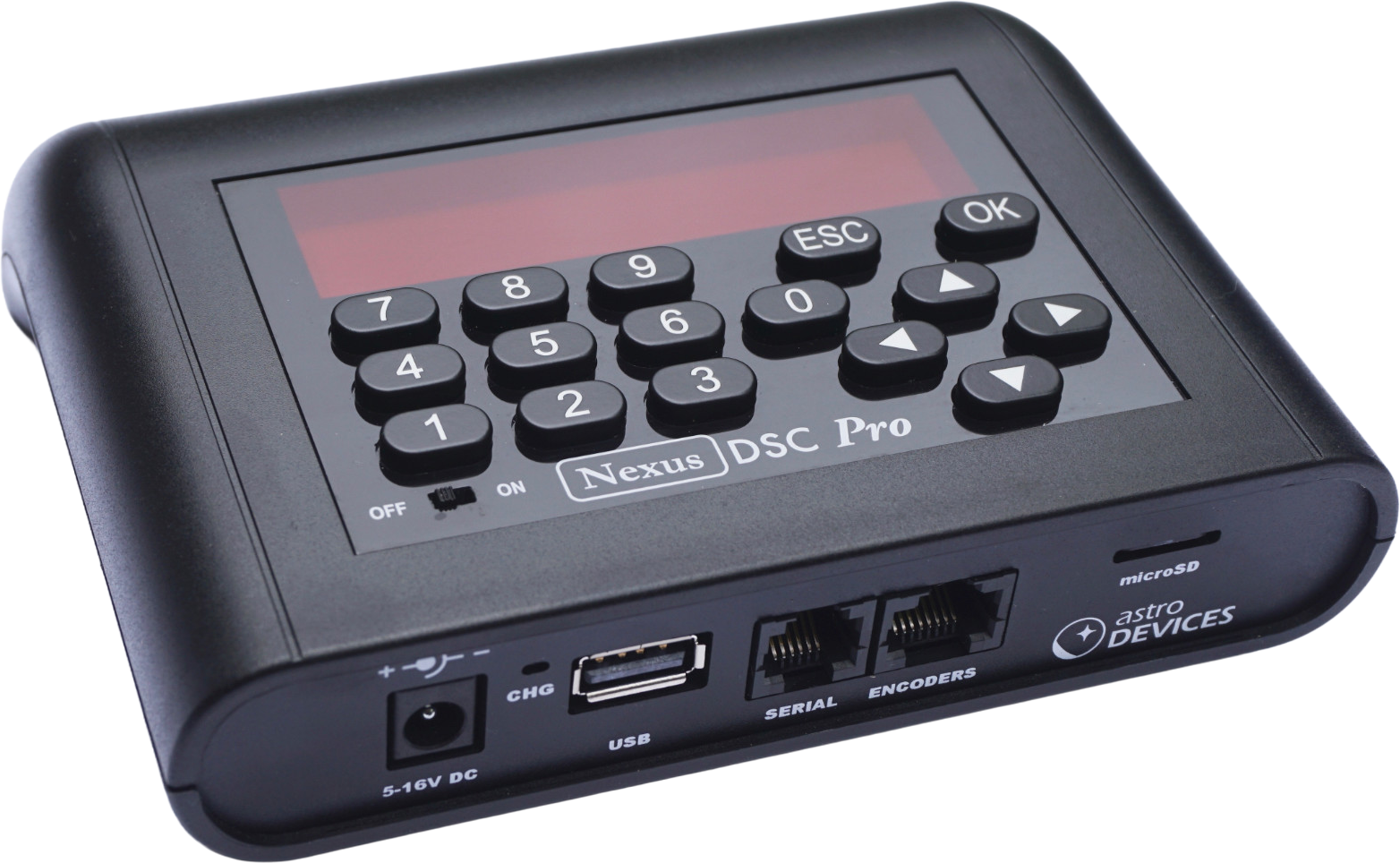

Nexus Digital Setting Circles Pro

Nexus Digital Setting Circles Pro

with Ultra Res 32K encoders

$895 installed on all new Obsessions.

Plug it in and start observing those 29,000 objects!

To order please contact us or phone.

Astro Devices website: astrodevices.com/shop/nexus-dsc-pro/

Advanced Digital Setting Circles

The Nexus DSC Pro boasts a powerful CPU and larger flash memory & RAM that allow you to spend more time doing what you really want: looking at the sky.

With the Pro’s upgraded CPU, memory, RAM, and sensors, you can store more objects in the database, search the database quicker, use encoder speeds of up to 100 million steps per second, and understand the environment around you better. The Pro will also have multi-lingual support, planned for the future.

You can use the Nexus DSC Pro with planetarium software (such as SkySafari Plus/Pro, Starry Night, Cartes du Ciel, and TheSky) on WiFi-enabled computing devices (iPhone, iPad, iPod Touch, Apple Computers, Android phones/tablets, Kindle Fire, and Windows based PCs/tablets).

Main Features

  • Red OLED graphical display

  • Full numeric tactile keypad

  • Practically unlimited number of celestial objects in its database*

  • Internal rechargeable Lithium battery

  • Built-in GPS receiver

  • Powerful Identify and Tour modes

  • Built-in sensors: barometric pressure, humidity and temperature

  • Multi-point telescope pointing analysis system

  • Supports up to 512GB microSD cards

  • Optional WiFi interface to your tablet/smartphone/laptop

  • Supports ServoCAT, SiTech and SkyTracker motor controllers

  • User catalogues (practically unlimited**) can be added and used

  • Can be charged/powered from an external 5-16V DC power source

Nexus Pro DSC installation

We fabricate our own steel mounting hardware and cables for the ultra res 32K res encoders. When you buy the Nexus Pro Digital Setting Circles with your Obsession you get quality factory installation. Encoder arms are easily removed with brass thumb screws. No tools required.

Self installation Instructions: 12.5, 15, 18, and 20 inch

Self installation Instructions: 25 and 20 inch
